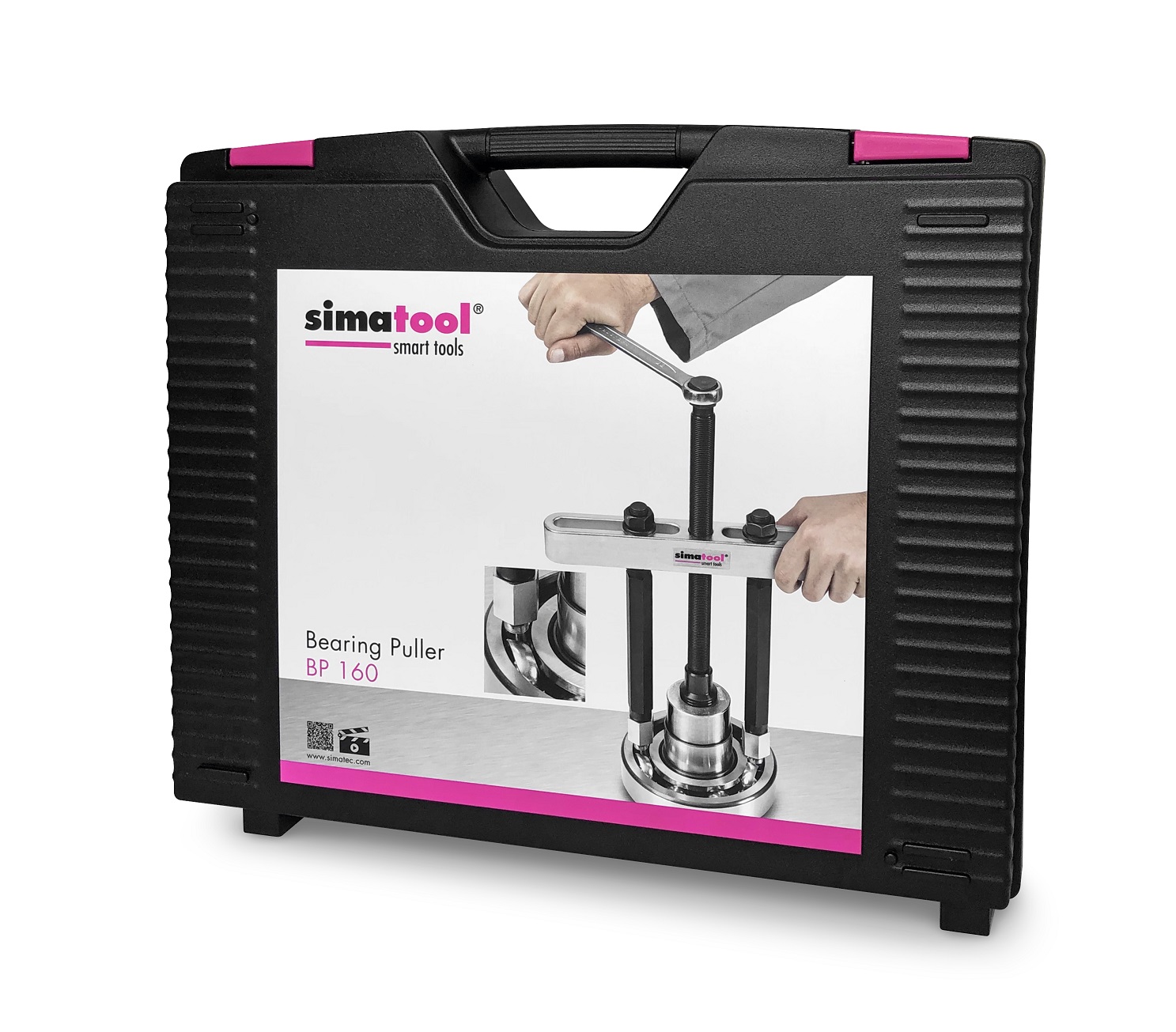

Bearing Puller BP160

The deep-groove ball bearing removal set

---

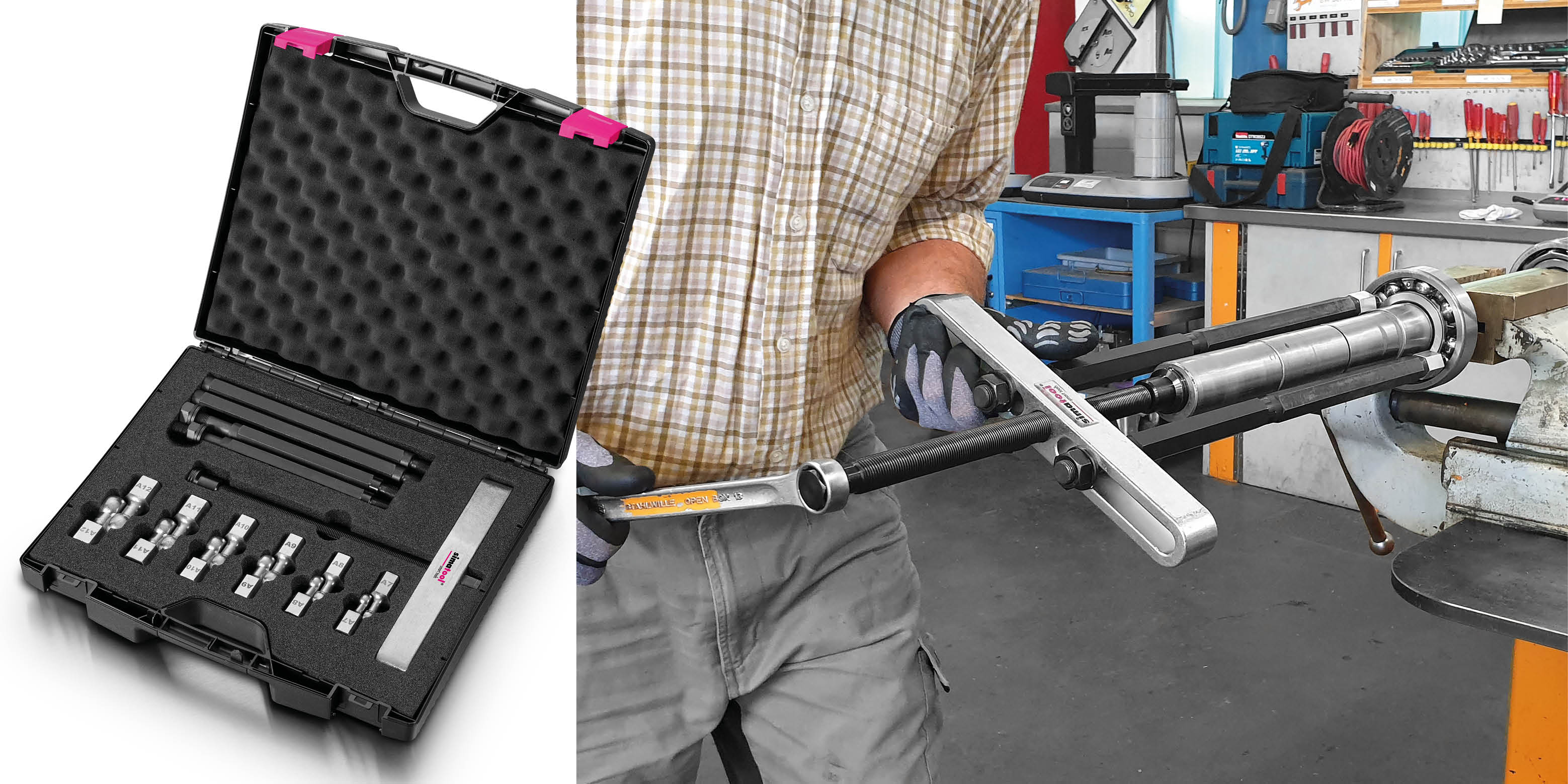

The BP 160 Bearing Puller enables the professional removal of deep groove ball bearings. Sealed bearings can also be removed after removing the appropriate seal. The ball adapters of the pull rod are inserted in the bearing race and then rotated by 90 degrees to ensure a secure hold. The BP 160 Bearing Puller makes it possible to remove more than 50 different deep groove ball bearings, with an inner diameter of 30 to 160 mm.

Your benefits from the simatool BP 160 Bearing Puller:

• Professional removal of deep groove ball bearings
• Adjacent parts do not need to be removed or dismantled
• High-quality case
• An ideal addition to the simatool BP 61 Bearing Puller

Application areas of the BP160:

• Machine construction industry
• Operational maintenance
• Maintenance of electric motors
• Conveyor technology
• Textile industry
• Metalworking industry
• Construction equipment
• Agricultural machinery
• Automotive industry
• Recycling industry
• Cement industry
• Cable cars/ropeways

The ideal solution for removing deep groove ball bearings from the shaft and from the housing.

Technical data sheet

Technical data BP 160 Bearing Puller

Spanner size: 22mm

Ball adapter A7 – A12: 6sets each with 2 ball adapters

External dimensions of the carrying case (L x W x H): 437 x 379 x 100mm

Weight of the kit: 9100g
