Fitting Tool FT-P

The installation tool for forces up to 5T

---

The Fitting Tool FT-P, in combination with a mechanical press, guarantees the correct assembly of components with an inside diameter greater than 50mm.

The FT-P is the ideal solution for installations requiring high mounting forces, since the tool can be used on presses. It thus allows installations that could not be performed by striking with a hammer.

Your advantages using the simatool FT-P Fitting Tool:

• A unique product, specially designed for use with presses
• The ideal supplement to the proven simatool FT 33 Fitting Tool

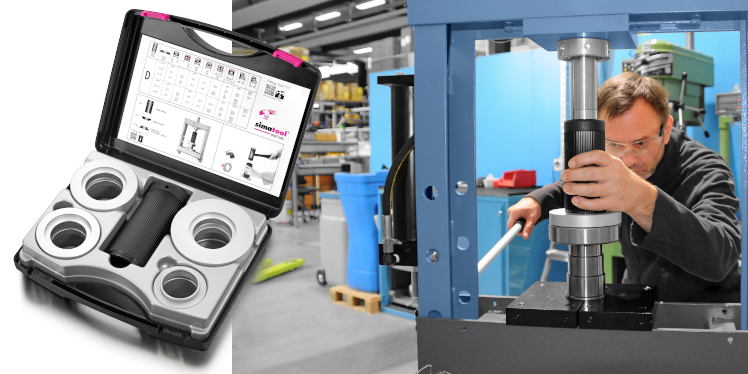

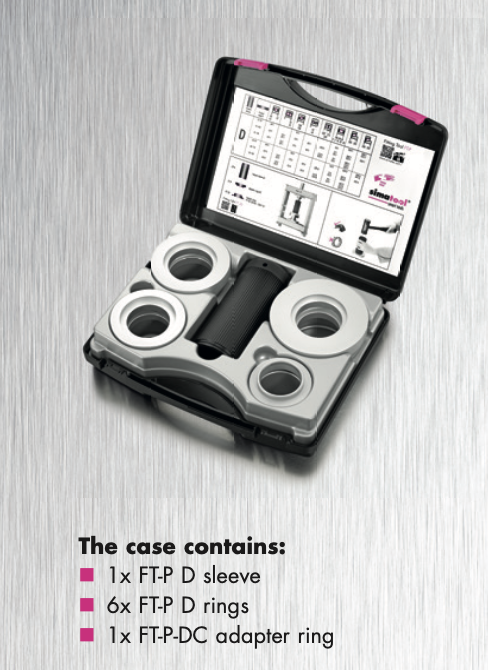

• Compact case with high-quality components and detailed instructions inside the case cover
• High-quality aluminium rings that do not deform even with press-in forces of 5 tonnes

Application areas of the FT-P:

• General mechanical engineering
• Electric motor production
• Automotive industry, cars and trucks
• Construction equipment
• Mechanical maintenance

Application fields of simatool FT-P

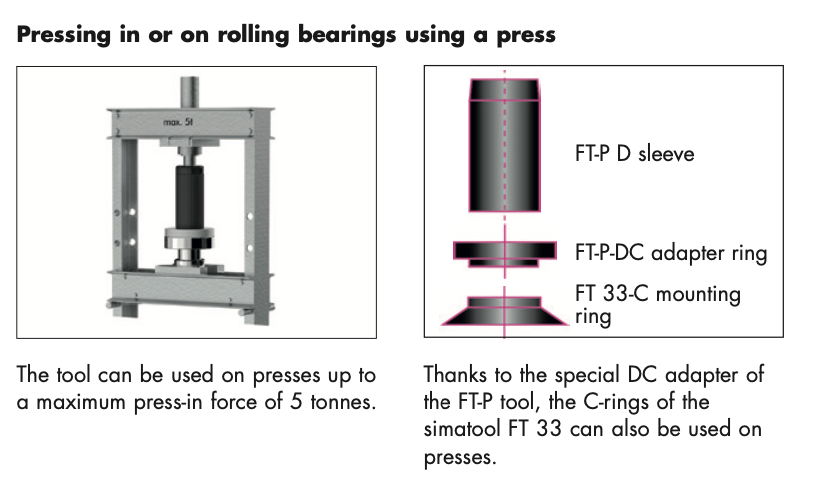

The tool can be used on presses up to a maximum press-in force of 5 Tonnes.

If you need more info, please Contact Us

---

---
